Set up Payment Gateway

Set up practice and practitioner bank accounts to support the Payment Gateway and select the applicable payment card settings if OLA is used.

Configure the Bank Accounts in Zedmed

Add the practice or practitioners' Tyro eCommerce information to their bank account in Zedmed.

Perform the following checks:

• You have the bank account owner's Tyro Merchant ID (MID).
• You have the bank account owner's Tyro Integration API password. To learn more, see the Create API password guide.
• You have the bank account owner's Tyro Reporting password. To learn more, see the Create API password guide.
•  Check each doctor has the correct Bank List selected in Doctors Details to ensure bank accounts are assigned correctly.

Perform the following steps:

1. Select Practice Setup > Practice.
2. Select the Bank Accounts tab.
3. Select the Name of the bank account from the drop-down.
   This is the bank account for the user whose eCommerce account the Tyro passwords are being copied from.
4. Under Payment Gateway
   • Enter the MID in the format Tyro_XXXXXX
   • Paste the Tyro Integration API password from the account holder's eCommerce account.
   • Paste the Tyro Reporting password from the account holder's eCommerce account.
   • Enter 1.85% into the Reporting Password
5. Select Test Connection to confirm the correct passwords have been entered.
   If these steps failed, check the MID and passwords against the correct eCommerce Account.
6.  Close to save and exit.
   Repeat these steps for each bank account.




Select Appointment Type options (only if using OLA)

Configure the payment card options supported for each practitioner by Appointment Type.

To configure Payment Gateway Availability:

1. Open Appointment Types (Practice setup>Appointments).
2. Select the first Appointment Type to configure.
3. Tick Credit Card token required.
   Payment options for each practitioner will be available.
   Remove the Credit Card Required tick for practitioners who do not want patients to be asked for card information.
4. Estimated Billing Amount (optional).
   This field allows the practice to display the estimated appointment cost when the patient books an appointment.
   • If you want the estimated appointment cost to display when an appointment is booked, enter the amount.
   • If a doctor has their own appointment cost, enter it into the Estimate Amount field next to the doctor.
   • If these fields are blank, no message will be displayed
5. Bulk Billing exemptions.
   Tick the box by the allowed exemption for pension and DVA card holders. They will not be asked for payment details in OLA.
   At the Yes/No prompt:
   • Select Yes if the exemptions apply to the entire practice, and all doctors will be ticked.
   • Select No if it is per doctor,r and tick next to the names of doctors accepting the exemptions.
6. Age Range exemptions.
   Tick the box and enter the age range to exempt qualifying patients from being asked for payment details OLA.
   E.g enter 10 if the child must be 9 or younger and 65 if the patient must be 66 or older.
   At the Yes/No prompt:
   • Select Yes if the exemptions are for the whole practice and all doctors will be ticked.
   • Select No if it is per doctor, and tick next to the names of doctors accepting the exemptions.
7. Select the next Appointment Type Name that uses Payment Gateway and repeat the steps above.
8. Select Close to save and exit.



Customise SMS text (optional)

Reception can send SMS messages to patients to request credit card information for Payment Gateway (ePayment billing).  Requires Zedmed v39 or later.

The text used for patients with upcoming appointments, and those with no appointments, is different and customisable.

To see the messages or change them:

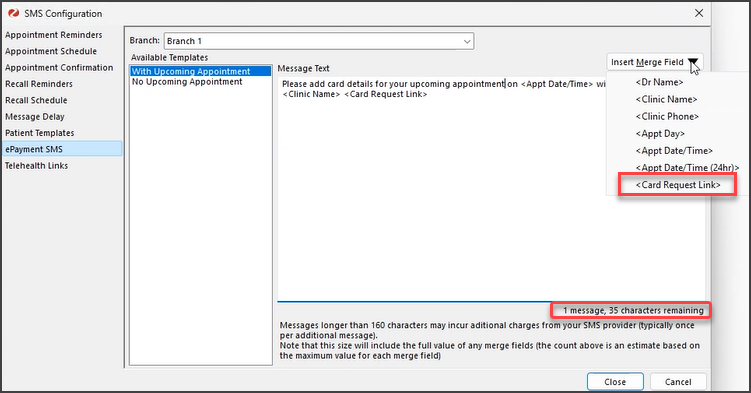

1. Select Practice Setup > SMS configuration to open this screen.
2. Select the ePayment SMS tab.
3.  Select either 'With Upcoming Appointment' or 'No Upcoming Appointment'
4. Make any required text updates.
5. Check the characters remaining. If you exceed the number, it will take 2 or more SMS messages to send the text.
6. Select Close to save and exit.



7. Viewing the SMS in the Message Manager. In this example, the text has been changed by the practice.



Important: Zedmed estimates an average of 85 characters for the Payment Gateway link, but this varies depending on the clinic name length. 85 characters are automatically deducted from the 160-character limit to estimate how many characters remain before a second SMS is required. Practices should check how many SMS messages were used to send the final message and adjust the wording accordingly.
